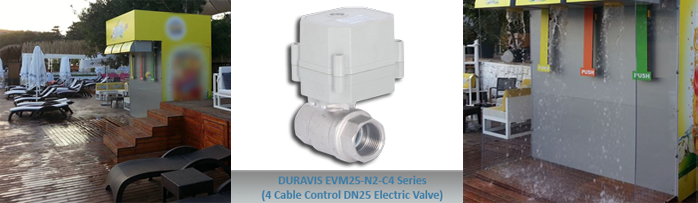

A big multinational consumer-products company, has plans to establish the shower systems in the scope of their marketing plan in the summer of 2013 in Turkey, on the Aegean and Mediterranean beaches. Located along the coast, more than 100 shower-dispensers are placed at the beaches.
The shower resembling carbonated drink dispenser is aimed to make the shower after sea more entertaining and different. To take a shower, all needs to be done is to stand under the dispenser and hit the “PUSH” button.
When "PUSH" button is pressed, the timer which is set to 15 seconds sends the electrical signal to the DURAVIS EVM series of mini motorized valves. During this time, the valves begin to open and remain open for 15 seconds and water-flow begins through the pipeline, DN25 (1 "). 15 seconds is over, timer changes the switching and the valve-closing begins and the flow of water shuts off. Thus showering pleasure ends. To live that enjoyment again, it is need to push the "PUSH" button which triggers DURAVIS mini motorized valves.
Having low-pressure water in this system; as a very convenient, reliable and economical control unit;
|
DURAVIS Mini Electric Actuated Valve, 230 VAC
|
|
(4 Cable Control)
|
|
Model
|
:
|
EVM25-N2-C4
|
|
Valve Size
|
:
|
1" BSP
|
|
Max Operat. Pressure
|
:
|
15 Bar
|
|
Valve Material
|
:
|
Nikel Kaplý Pirinç
|
|
Fluid Temperature
|
:
|
2°C...90°C
|
|
Actuator Voltage
|
:
|
230 VAC
|
|
Max Torque
|
:
|
2 Nm
|
|
On-Off Cycle Time
|
:
|
5-6 seconds
|
|
Cable Length
|
:
|
0,5 m
|
|
Product Lifecycle
|
:
|
50.000-100.000 open-close
|
is used at this application.
|
